XXL-JOB 简单使用

发表于 | 分类于 |

参考：SpringBoot整合XXL-JOB — CSDN

ip声明

本地 ip：10.11.12.254
XxlJob ip：10.11.12.202

项目

依赖：当前pom

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.amoros.pumpkin</groupId>
        <artifactId>pumpkin-mc</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <artifactId>pumpkin-mc-job</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>pumpkin-mc-job</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    </properties>
    <dependencies>
        <!--依赖acl-->
        <dependency>
            <groupId>com.amoros.pumpkin</groupId>
            <artifactId>pumpkin-mc-acl</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-web</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.springframework.cloud</groupId>
                    <artifactId>spring-cloud-starter-openfeign</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>top.legendscloud</groupId>
            <artifactId>spring-cloud-legends-web-starter</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>com.alibaba.cloud</groupId>
                    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>com.alibaba.cloud</groupId>
                    <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!-- spring-cloud -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>top.legendscloud</groupId>
            <artifactId>spring-cloud-legends-common</artifactId>
        </dependency>
        <!--spring batch配置 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-batch</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- 模板引擎 -->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity</artifactId>
        </dependency>
        <!-- Freemarker -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-freemarker</artifactId>
        </dependency>
        <!-- xxl-job-core -->
        <dependency>
            <groupId>com.xuxueli</groupId>
            <artifactId>xxl-job-core</artifactId>
        </dependency>
        <!-- spring kafka -->
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka</artifactId>
        </dependency>
        <!-- 多数据源配置 -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>dynamic-datasource-spring-boot-starter</artifactId>
        </dependency>
    </dependencies>

    <build>
        <finalName>${project.artifactId}</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-deploy-plugin</artifactId>
                <version>2.8.2</version>
                <configuration>
                    <skip>true</skip>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

依赖：父pom

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <parent>
    <groupId>top.legendscloud</groupId>
    <artifactId>spring-cloud-legends</artifactId>
    <version>2021.9.8-M1</version>
  </parent>

  <groupId>com.amoros.pumpkin</groupId>
  <artifactId>pumpkin-mc</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>pom</packaging>

  <modules>
    <module>pumpkin-mc-service</module>
    <module>pumpkin-mc-job</module>
    <module>pumpkin-mc-api</module>
    <module>pumpkin-mc-acl</module>
  </modules>

  <properties>
    <pumpkin-mc.version>0.0.1-SNAPSHOT</pumpkin-mc.version>
    <stone-spring-boot-starter-cloud.version>0.5.1-SNAPSHOT</stone-spring-boot-starter-cloud.version>
    <postgresql.version>42.2.18</postgresql.version>
    <xxl-job.version>2.2.0</xxl-job.version>
    <dynamic-datasource-spring-boot-starter.version>3.4.1</dynamic-datasource-spring-boot-starter.version>
    <ql-express.version>3.2.5</ql-express.version>
  </properties>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>QLExpress</artifactId>
        <version>${ql-express.version}</version>
      </dependency>
      <dependency>
        <groupId>com.amoros.pumpkin</groupId>
        <artifactId>pumpkin-mc-api</artifactId>
        <version>${pumpkin-mc.version}</version>
      </dependency>
      <dependency>
        <groupId>com.amoros.pumpkin</groupId>
        <artifactId>pumpkin-mc-acl</artifactId>
        <version>${pumpkin-mc.version}</version>
      </dependency>
      <dependency>
        <groupId>com.amoros.stone</groupId>
        <artifactId>stone-spring-boot-starter-cloud</artifactId>
        <version>${stone-spring-boot-starter-cloud.version}</version>
      </dependency>
      <dependency>
        <groupId>org.postgresql</groupId>
        <artifactId>postgresql</artifactId>
        <version>${postgresql.version}</version>
      </dependency>
      <dependency>
        <groupId>com.xuxueli</groupId>
        <artifactId>xxl-job-core</artifactId>
        <version>${xxl-job.version}</version>
      </dependency>
      <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>dynamic-datasource-spring-boot-starter</artifactId>
        <version>${dynamic-datasource-spring-boot-starter.version}</version>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-devtools</artifactId>
      <optional>true</optional>
    </dependency>
  </dependencies>

</project>

yml配置

1
2
3
4
5
6
7
8
9
10
11
12
13
# xxl-job 配置
xxl:
  job:
    accessToken: ''
    admin:
      addresses: http://10.11.12.202:8080/
    executor:
      address: ''
      appname: pumpkin-mc-job
      ip: ''
      logpath: /home/amoros/logs/xxl-job/pumpkin-mc-job
      logretentiondays: 30
      port: 9999

XxlConfig

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
package com.amoros.pumpkin.mc.infrastructure.config;

import com.xxl.job.core.executor.impl.XxlJobSpringExecutor;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class XxlJobConfig {
    private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);

    @Value("${xxl.job.admin.addresses}")
    private String adminAddresses;

    @Value("${xxl.job.accessToken}")
    private String accessToken;

    @Value("${xxl.job.executor.appname}")
    private String appname;

    @Value("${xxl.job.executor.address}")
    private String address;

    @Value("${xxl.job.executor.ip}")
    private String ip;

    @Value("${xxl.job.executor.port}")
    private int port;

    @Value("${xxl.job.executor.logpath}")
    private String logPath;

    @Value("${xxl.job.executor.logretentiondays}")
    private int logRetentionDays;


    @Bean
    public XxlJobSpringExecutor xxlJobExecutor() {
        logger.info(">>>>>>>>>>> xxl-job config init.");
        XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
        xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
        xxlJobSpringExecutor.setAppname(appname);
        xxlJobSpringExecutor.setAddress(address);
        xxlJobSpringExecutor.setIp(ip);
        xxlJobSpringExecutor.setPort(port);
        xxlJobSpringExecutor.setAccessToken(accessToken);
        xxlJobSpringExecutor.setLogPath(logPath);
        xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);

        return xxlJobSpringExecutor;
    }

}

DemoSchedule => XxlJob Handler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
package com.amoros.pumpkin.mc.schedule;

import com.xxl.job.core.biz.model.ReturnT;
import com.xxl.job.core.handler.annotation.XxlJob;
import com.xxl.job.core.log.XxlJobLogger;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

@Component
@Slf4j
public class DemoSchedule {

    @XxlJob("demoJobHandler")
    public ReturnT<String> demoJobHandler(String jsonParam) {
        try {
            log.info("开始执行任务 demoJobHandler");
        } catch (Exception e) {
            log.error("demo job 异常", e);
            XxlJobLogger.log("demo job 生成异常{}", e.getMessage());
            return ReturnT.FAIL;
        }
        return ReturnT.SUCCESS;
    }


}

启动SpringBoot项目

管理页面配置

登录XxlJob 管理页面

http://10.11.12.202:8080/

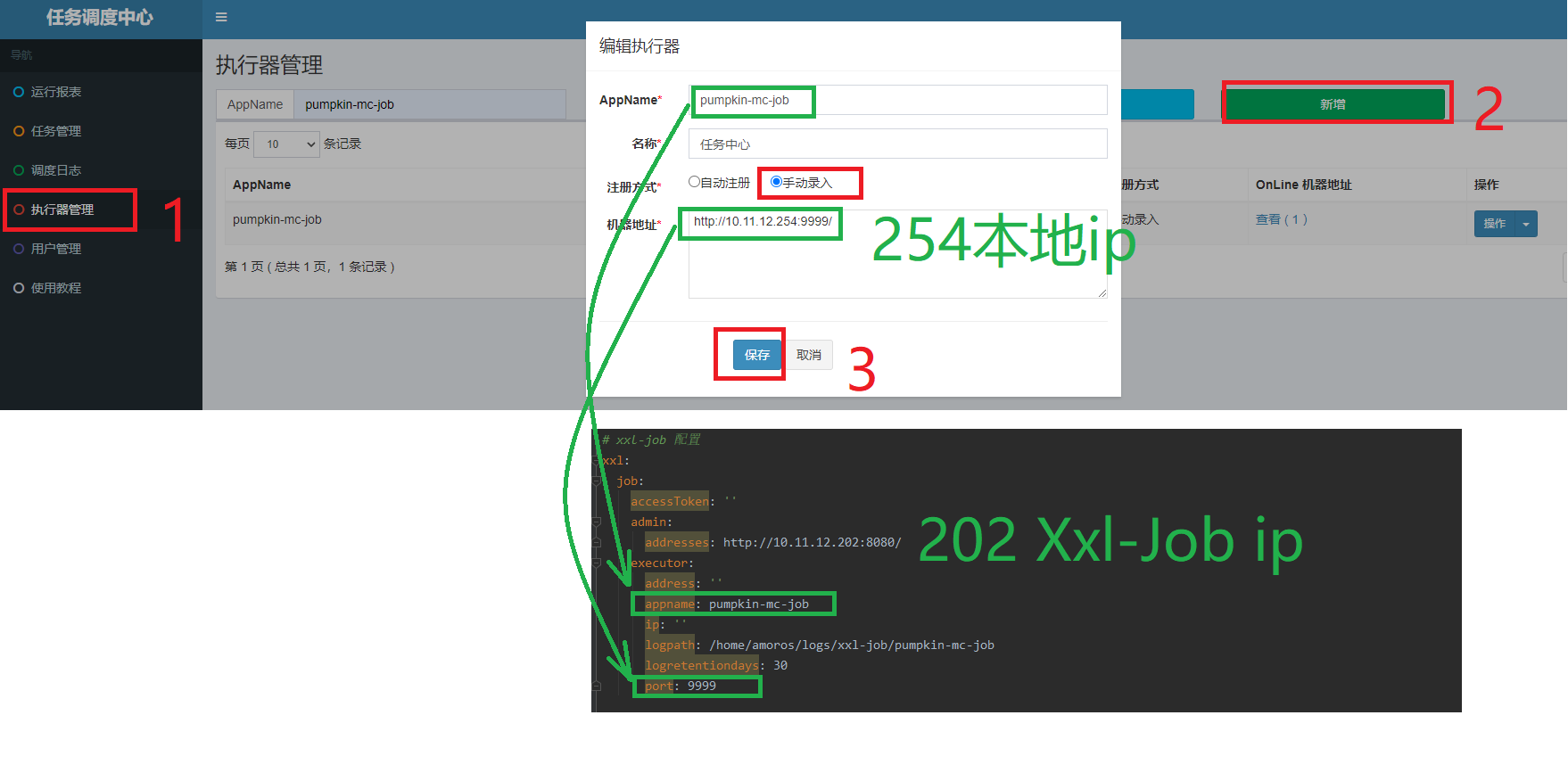

新增执行器

在这里插入图片描述

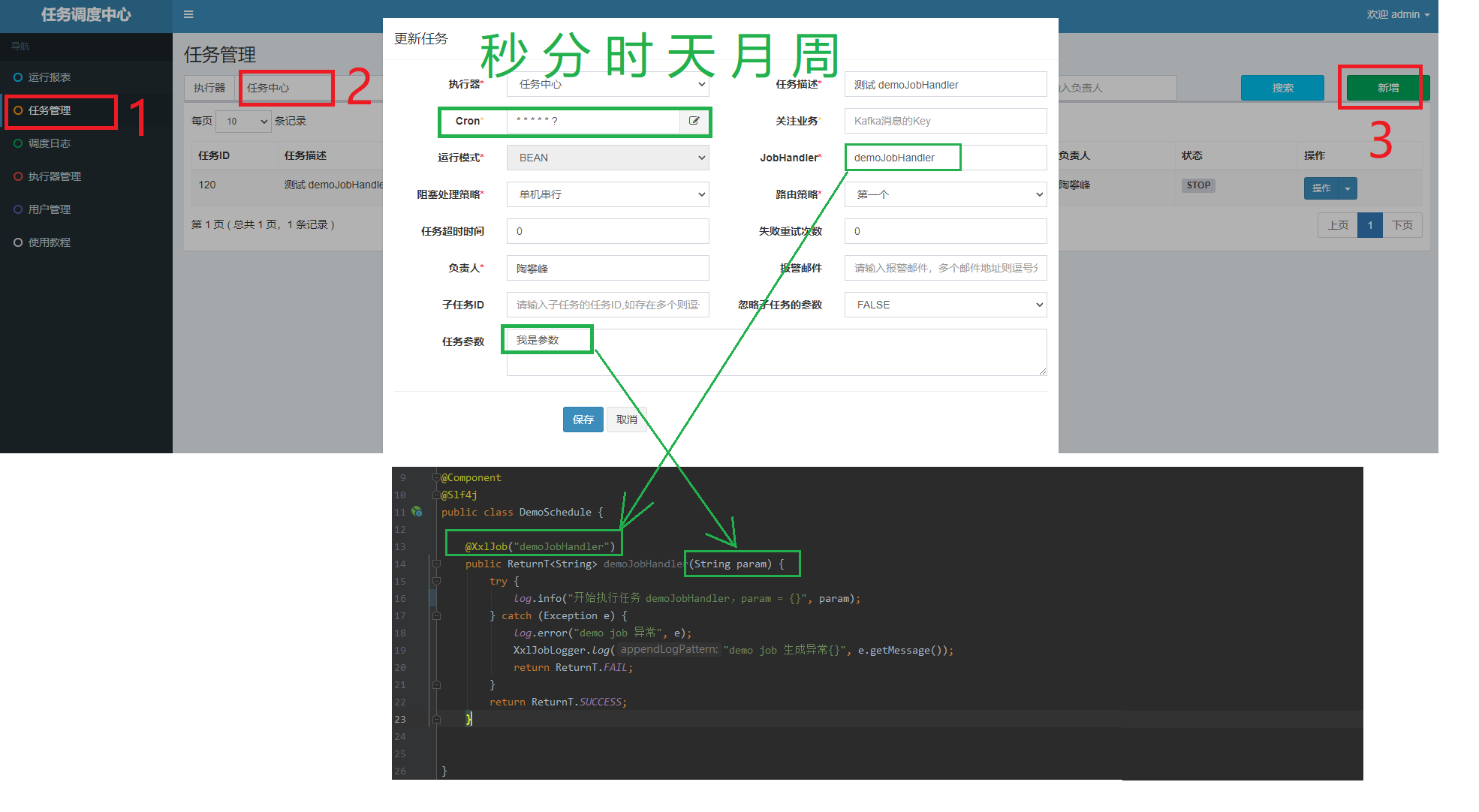

新增任务

在这里插入图片描述

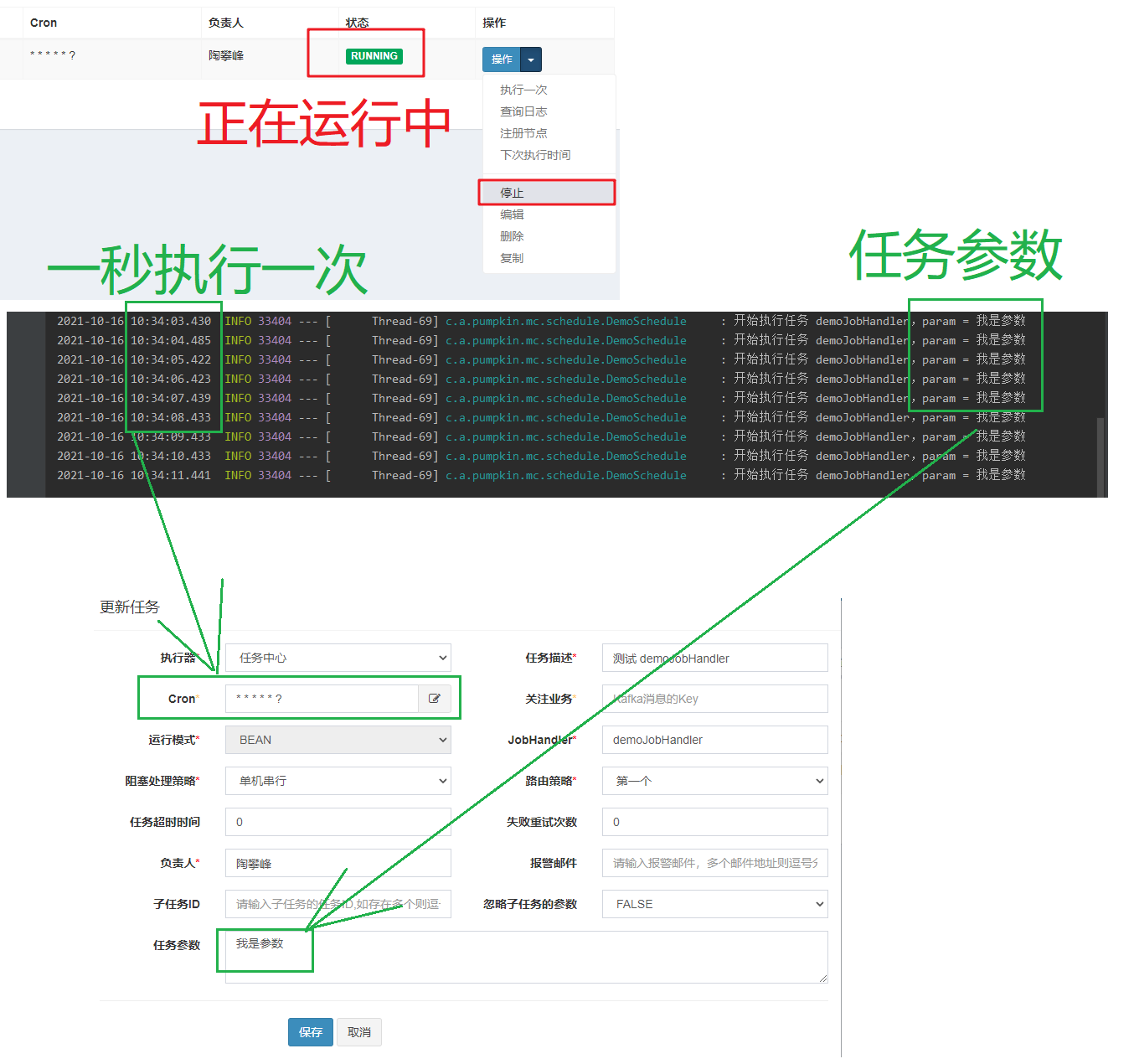

启动，测试

此时
1、项目已经启动好
2、任务执行器、新增任务（任务Handler 和 @XxlJob 对应）
3、启动任务，查看控制台
在这里插入图片描述

手动触发一次

在这里插入图片描述

源码启动

2022-03-10 17:19:42

1、拉下来代码 https://github.com/xuxueli/xxl-job
许雪里

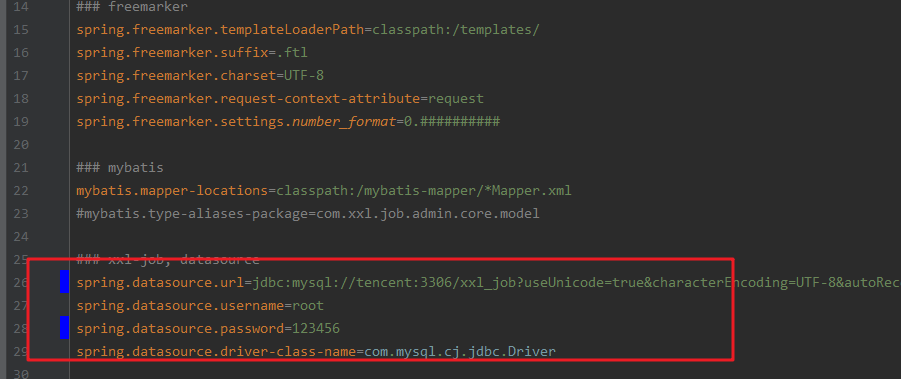

2、配置数据库 xxl-job-admin\src\main\resources\application.properties
在这里插入图片描述

3、创建数据库 doc\db\tables_xxl_job.sql

4、启动 xxl-job-admin

5、访问 http://localhost:8080/xxl-job-admin/
admin 123456
